LRB 18

Name: LRB 18 Piling and drilling rig (LRB series)
Brand: Liebherr

Piling and drilling rig (LRB series)

The all-round piling and drilling rig LRB 18 owes its name to the sledge’s travel distance of 18 m. It convinces with compact design and low operating weight, which results in low ground pressure. This ensures quick set-up on site as well as flexibility in transferring the machine between different jobsites. One of the most frequent types of application for the LRB 18 is the installation of sheet piles. Additionally, the machine is suitable for other common foundation work including drilling with continuous flight auger or double rotary head, soil mixing and piling work with a hydraulic hammer...

metric

imperial

Operating weight - 52.0 t
52.0 t
Max. torque - 120 kNm
120 kNm
Max. crowd force - 200 kN
200 kN
Engine power - 390 kW
390 kW
Pile driving with vibrator slim design, max. pile length - 17.2 m
17.2 m

Economic fuel consumption

Innovative hydraulic concepts achieve high performance and keep fuel consumption low, despite reduced engine power.

Obstacle recognition

An improvement for slurry wall application is the obstacle recognition, which enables the timely detection of obstacles in the soil. This protects both the attachment and the basic machine.

Easy transportation and quick set-up

Basic machine and leader can be transported in one piece with all hydraulic hoses connected. The minimized assembly work allows for quick and easy transportation of the machine between jobsites.

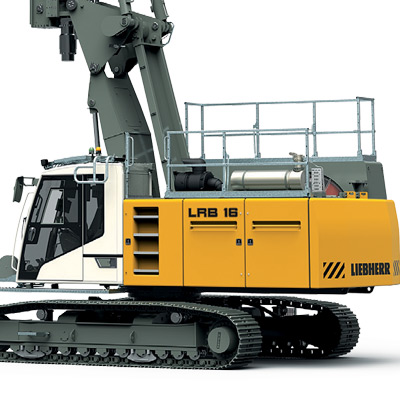

Safety features

Roof railing as well as rear-view and side cameras enhance safety.

High operator comfort

The innovative cabin design includes a modern air-conditioning system and an optimized view from the cabin, as well as an orthopaedic operator’s seat. All switches, joysticks and pedals are ergonomically positioned.

Attachment recognition

The automatic attachment recognition also records performance figures of the respective attachment.

Operating weight	52.0 t
Max. torque	120 kNm
Max. winch line pull	50 kN
Max. crowd force	200 kN
Engine power	390 kW
Continuous flight auger drilling, max. drilling depth	20.3 m
Continuous flight auger drilling, max. drilling diameter	600 mm
Full displacement drilling, max. drilling depth	21.0 m
Full displacement drilling, max. drilling diameter	600 mm
Double rotary drilling, max. drilling depth	17.6 m
Double rotary drilling, max. drilling diameter	620 mm
Soil mixing, max. effective length	17.2 m
Pile driving with vibrator slim design, max. pile length	17.2 m
Pile driving with ring vibrator, max. pipe length	27.0 m
Pile driving with hydraulic hammer, max. pile length	16.9 m
Min. transport width	3,000 mm
Min. transport height	3,400 mm

Technical data – LRB 18 piling and drilling rig

Technical data (USA) – LRB 18 piling and drilling rig

Overview LRB series piling and drilling rigs

Overview LRB series piling and drilling rigs (USA)

Solutions for deep foundation work

Technical data - Vibrator LV 20 / LV 20 F

Rotary drilling tools for Kelly drilling

CFA drilling tools

Wear parts for drilling tools

Customer service for crawler cranes and foundation machines

Field Service

Original Liebherr Retrofits

Upgrade: Earth Spike

MyJobsite

LiSIM - training simulators for construction machines

Positioning System

Concrete pump controlled from the Liebherr deep foundation machine

Process data recording PDE and process data reporting PDR

Fuel costs matter! Efficiency-enhancing engine features

LiDAT – Data transmission and tracking system for crawler cranes and deep foundation machines

Job report using LIPOS and MyJobsite

Job report LRB 18 double rotary drilling

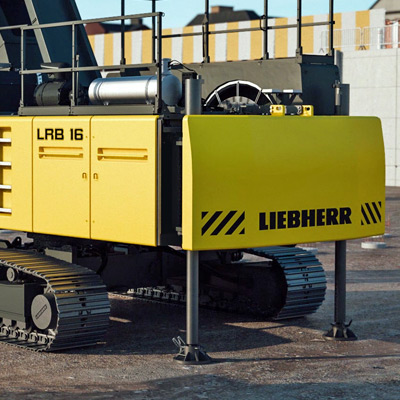

Rear supports

The robust undercarriage offers excellent stability, which can be further increased with the optional rear supports.

MyJobsite

One single tool for the collection, documentation and analysis of all process, machine, construction site and position data.

Recording of working processes (PDE)

With the PDE process data recording system machine data is recorded during the working process.

LIPOS positioning system

Accurate positioning and precise execution of piling or drilling processes.

Remote control

The complete loading and set-up processes can be carried out via remote control, which means only one person is required.

Eco silent mode

With the eco silent mode the engine speed can be reduced to a predefined, required level. With this feature a notable reduction in diesel consumption can be achieved without any impact on operational output. Noise emissions are thus also lowered.

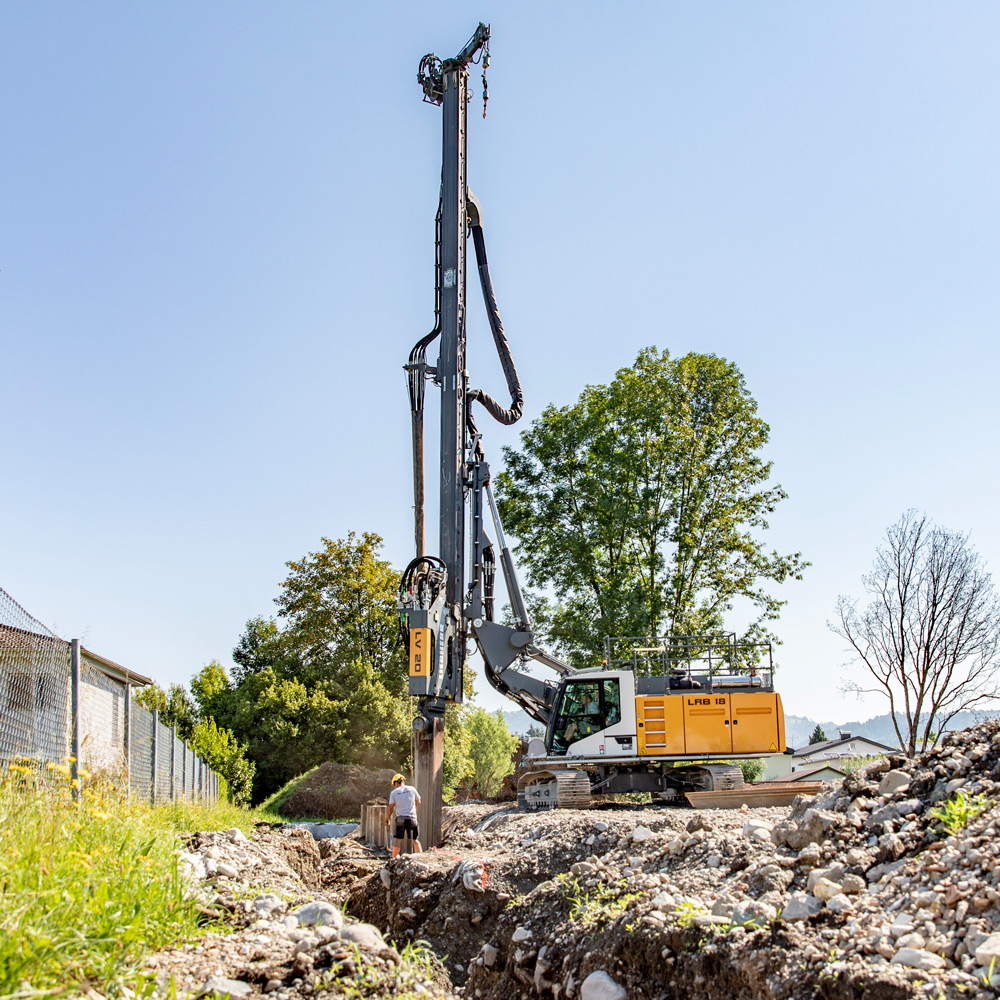

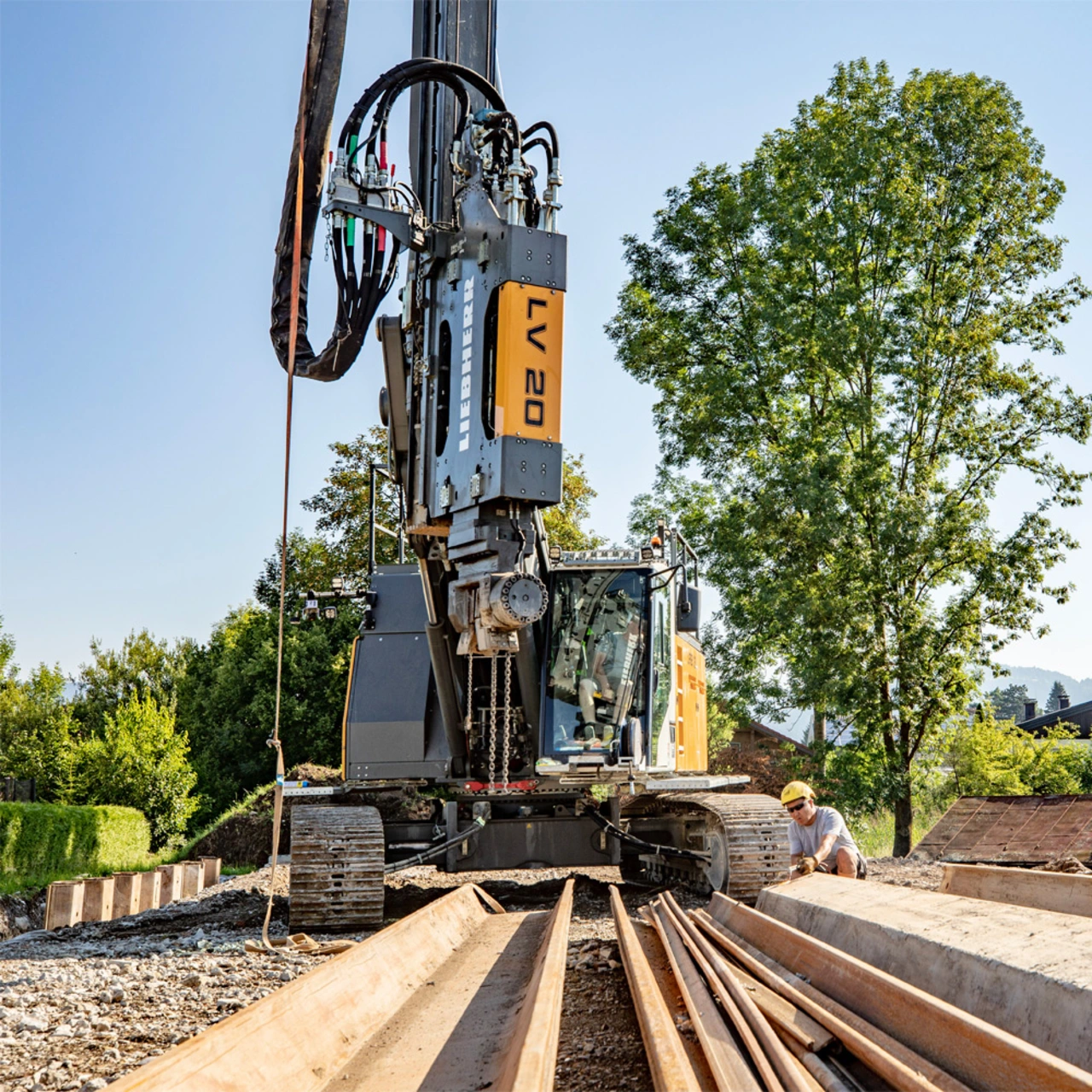

Vibrating

Vibrating allows for installing and extracting elements using harmonious vibration.

Continuous flight auger drilling

The loosened soil material is continuously conveyed to the surface using a continuous auger, the so-called continuous flight auger.

Impact driving

Impact driving uses a hydraulic hammer for the installation of various types of pile. The hammer’s ram mass impacts on the pile.

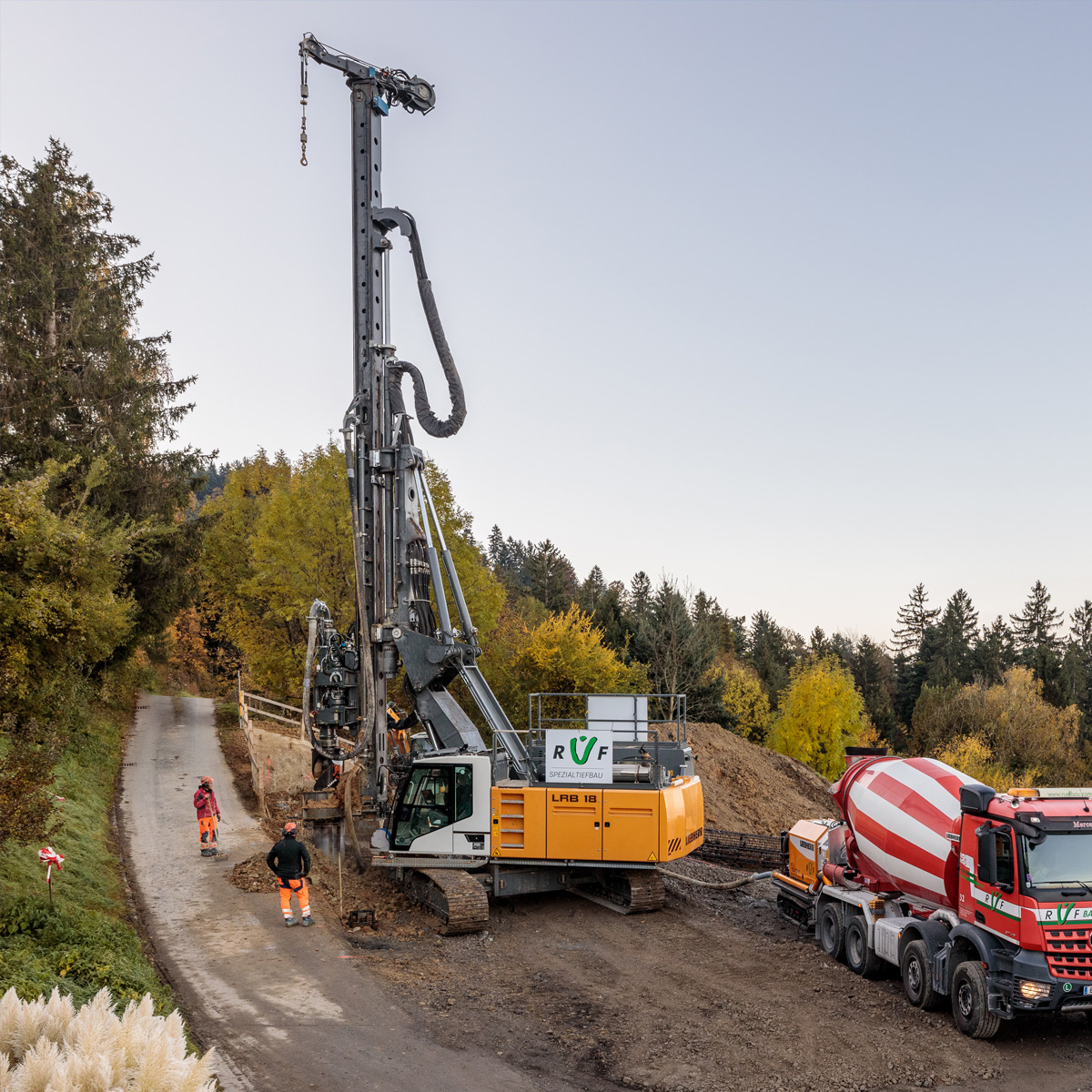

Double rotary drilling

Double rotary drilling combines continuous flight auger drilling with a continuous casing.

Wet soil mixing

For wet mixing a self-hardening suspension is introduced into the ground.

Vibro-replacement

Coarse extraneous material is filled into the vibrating hopper and a load-bearing gravel or crushed stone column is produced.
