Name: DAT 250 wind Slewing drive
Brand: Liebherr

Slewing drive

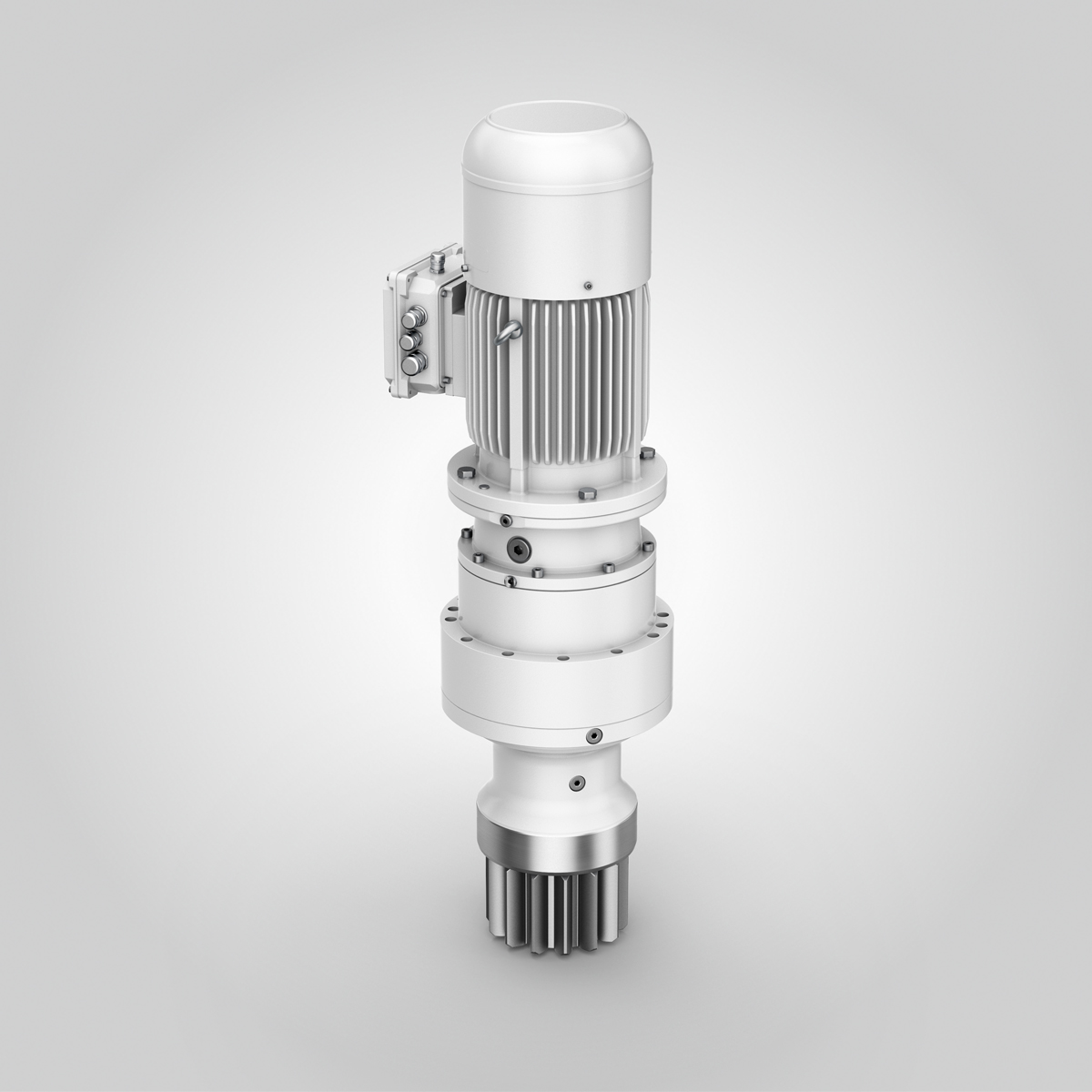

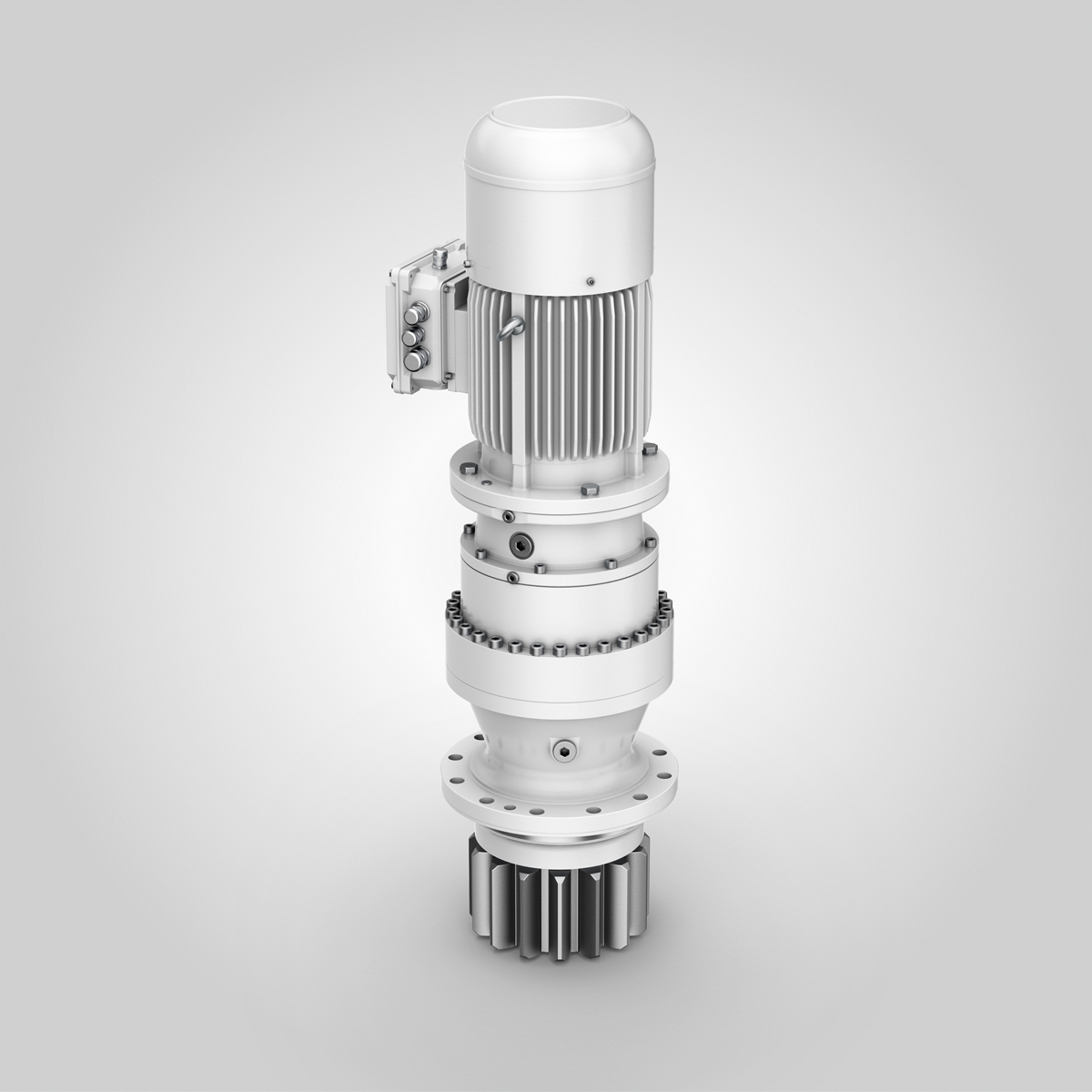

The slewing drive DAT 250 wind is part of the Liebherr series-production for wind turbines. The gearbox size 250 can be designed with a short output shaft (design 1) or long output shaft (design 2) and is suitable for use as a pitch gearbox.

metric

imperial

Reference output torque, dynamic - 8,500 Nm
8,500 Nm
Output torque Tmax - 21,900 Nm
21,900 Nm

Reference output torque, dynamic	8,500 Nm
Output torque Tmax	21,900 Nm
Areas of application	Wind energy
Gear transmission ratios (pitch)	105.5 / 120.9 / 127.4 / 132.6 / 150.3 / 164.9 / 188.7 / 194.8

Variants

Type	Design 1	Design 2
Diameter of centering seat (mm)	220	190 / 210
External diameter (mm)	280	270
Pitch circle diameter (mm)	250	245
Number of bolts	12	12
Diameter of bolts (mm)	17.5	14.0
Installation depth (mm)	68	185
Height of centering seat (mm)	20.0	15.0 / 45.0
Gearbox height (mm)	400	325
Flange height (mm)	25	113
Number of teeth (output pinion)	15	14
Gear module of output pinion	12	10
Height of output pinion (mm)	110	105
Weight (three-stage model) (kg)	115	110
Diameter of output pinion (mm)	215	170
