CMVE Axial piston motor

Variable displacement plug-in motor

The axial piston motors of the CMVE series are orientated around use in various crawler vehicles. The compact design results in an optimum performance to weight ratio. Special features of the CMVE motor are the integrated multi-disk brake, the integrated brake valve with automatic brake release as well as the flushing and pressure limiting valves.

  • Circulation - open

  • Adjustability - variable

  • Nominal pressure - 380 bar

  • Maximum pressure - 400 bar

  • Areas of application - Agriculture and forestry / Building construction and civil engineering / Special vehicles

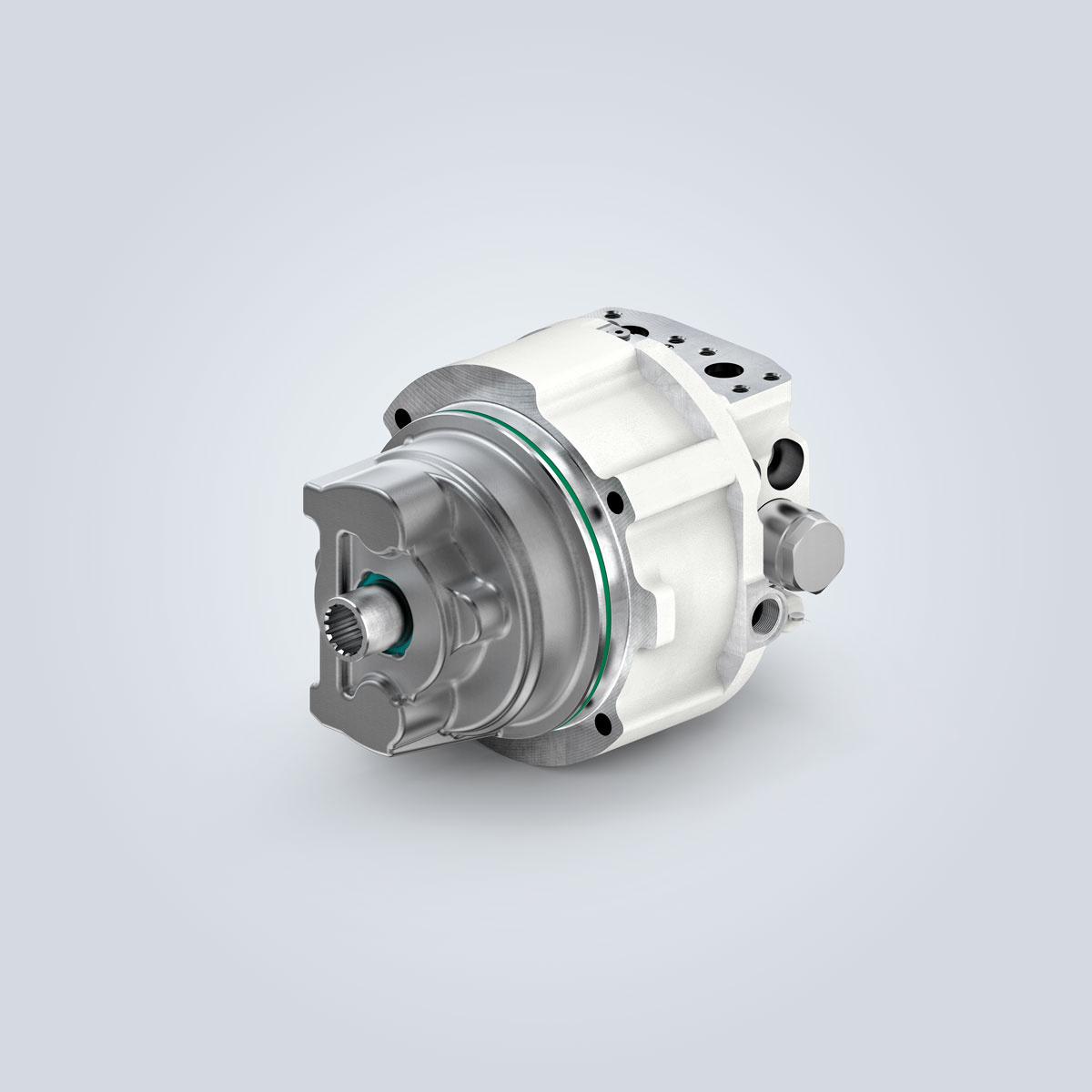

product image
Max. driving power [Pmax]
199 - 299 kW
Max. torque [Mmax]
488 - 951 Nm

Variants

productOrderInquiryTableCaption
Nominal size85108135165
Nominal pressure [pN] (bar)380380380380
Maximum pressure [pmax] (bar)400400400400
Displacement [Vg max] (cm³)85.2108.0135.7165.9
Max. speed [nmax] (rpm)3,9003,4703,2503,000
Displacement flow at Vg max and nmax [qv max] (l/min)332375441498
Max. driving power [Pmax] (kW)199225265299
Max. torque [Mmax] (Nm)488619778951
