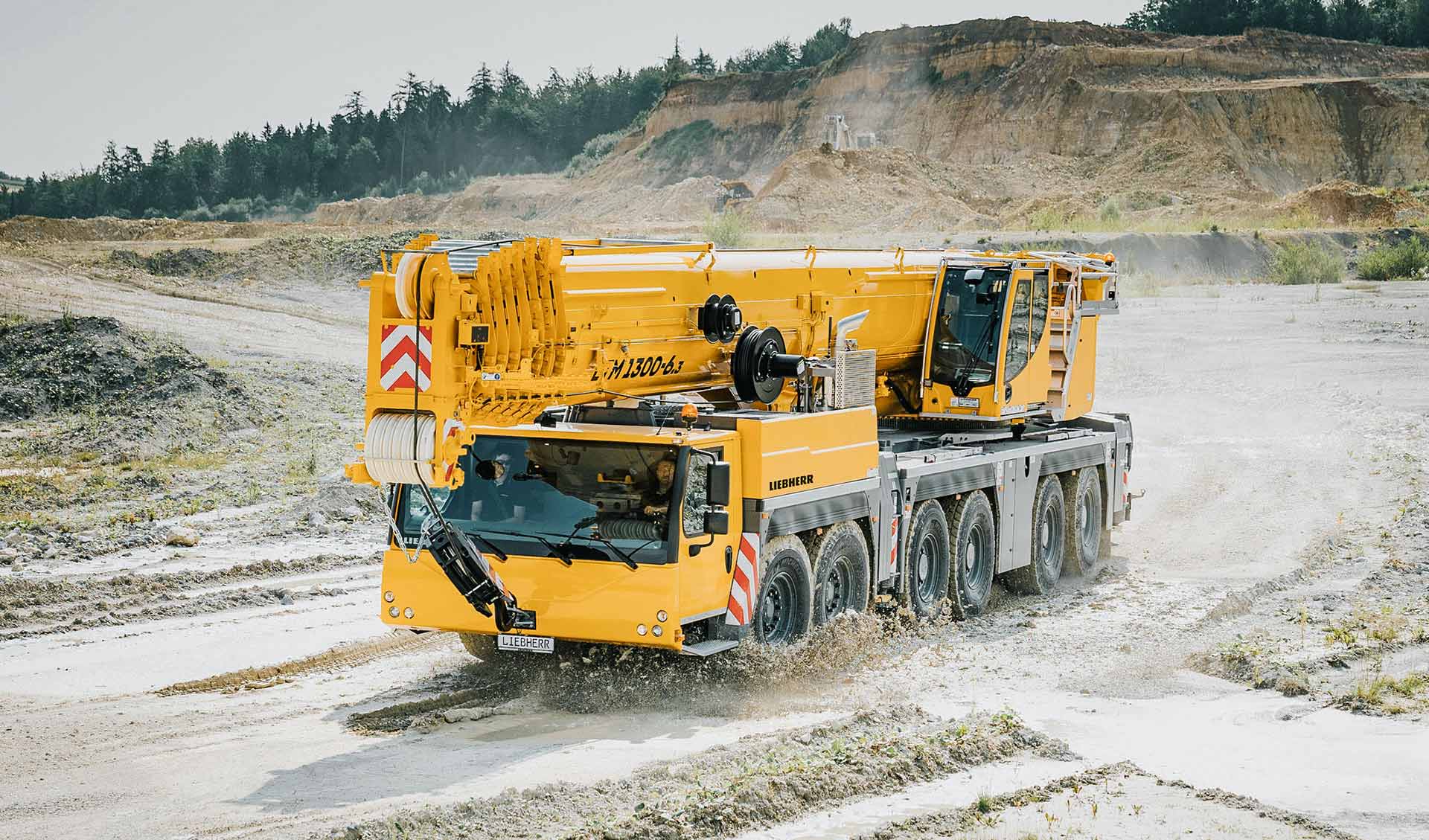

LTM 1300-6.3

Mobile crane

LTM 1300-6.3 - Reaching new heights

The LTM 1300-6.3 sets a new world record – a mobile crane which can carry a complete 90 metre (295 ft) telescopic boom on public roads with an axle load of 12 tonnes (26,450 lb). A versatile, economical fast-erecting crane with a peerless telescopic boom length in its class. It features all our latest innovations to ensure safe, powerful crane operations – ECOmode, ECOdrive, VarioBase®Plus, VarioBallast®, Auto-Ballast, single-engine concept and windspeed load charts. The 300 tonne (360 USt) model will add to the portfolio of Liebherr 6-axle cranes.

metricimperial

  • Max. load capacity - 300 t

  • Telescopic boom - 90 m

  • Max. hoist height - 120 m

  • Max. radius - 94 m

  • Number of axles - 6

What's inside

World record:

a 90 m / 295 ft telescopic boom that can be carried in full with an axle load of 12 t / 26,450 lb.

Variable support:

VarioBase® Plus supporting base enables the outriggers to be extended to different lengths and delivers even greater lifting capacities through its trapezoidal shape.

Economical and compact :

the mechanically adjustable VarioBallast® ballasting system enables the amount of ballast to be reduced whilst also enabling easy access to particularly constricted sites.

Flexible in the wind:

load charts with different maximum wind speeds of up to 15.6 m/s increase flexibility and safety in everyday use.

Take one engine out to increase lifting capacity:

in addition to reducing service and maintenance requirements, the single-engine concept also means less weight, meaning that lifting capacity can be increased.

Perfectly ballasted:

the counterweight has been improved both for transport and full crane operations. AutoBallast enables the ballasting process to be completed quickly and easily.

Photo gallery

Technical data

Max. load capacity
300 t
at radius
3.00 m
Telescopic boom from
14.70 m
Telescopic boom up to
90.00 m
Lattice jib from
4.00 m
Lattice jib up to
43.00 m
Drive engine/make
Liebherr
Drive engine
8-Zylinder-Diesel
Drive engine/power
455 kW
Number of axles
6
Drive/Steering standard
12 x 6 x 12
Drive/Steering option
12 x 8 x 12
Driving speed
85.00 km/h
Total ballast
88.00 t

Downloads

Technical Data - Mobile crane LTM 1300-6.3 [m/t]

Videos

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    Reaching new heights

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    First job for the first

Boom/jib combinations

Boom/jib combinations

Driving conditions

On-road driving
Jobsite driving

Ballast systems

Counterweight
VarioBallast: Counterweight radius

Technology

ECOmode
ECOmode minimises both fuel consumption and noise emissions when operating the crane superstructure. This is done by automatically disengaging the pump drive.
ECOdrive
ECOdrive makes the mobile crane significantly more comfortable and quieter by reducing the engine speed. Faster gearshifting delivers greater dynamic and traction offroad. On the road, the torque from the Liebherr diesel engine is used efficiently to minimise fuel consumption.
Single-engine concept
Take one engine out to increase lifting capacity. Or more accurately – the superstructure is powered by the undercarriage engine. Gear shafts are routed from the distributor gear in the substructure via two mitre gears to the pump distributor gear in the superstructure. That enables us to remove one engine – and we use this to increase the crane’s lifting capacity.
VarioBase® Plus
The combination of VarioBase technology and the crane’s structural steelwork. A trapezoidal support combined with the various support base delivers even higher lifting capacities, particularly over the crane’s rear outriggers.
VarioBallast® (mechanical)
Mechanically slewing ballasting cylinders enable the ballast radius to be changed quickly to two different settings. The smaller radius is used in constricted conditions whilst the larger one is used if a higher lifting capacity is required. This significantly increases the crane’s flexibility.
AutoBallast
The AutoBallast function completes the ballasting process automatically. All the steps are carried out after the button has been pressed just once.
