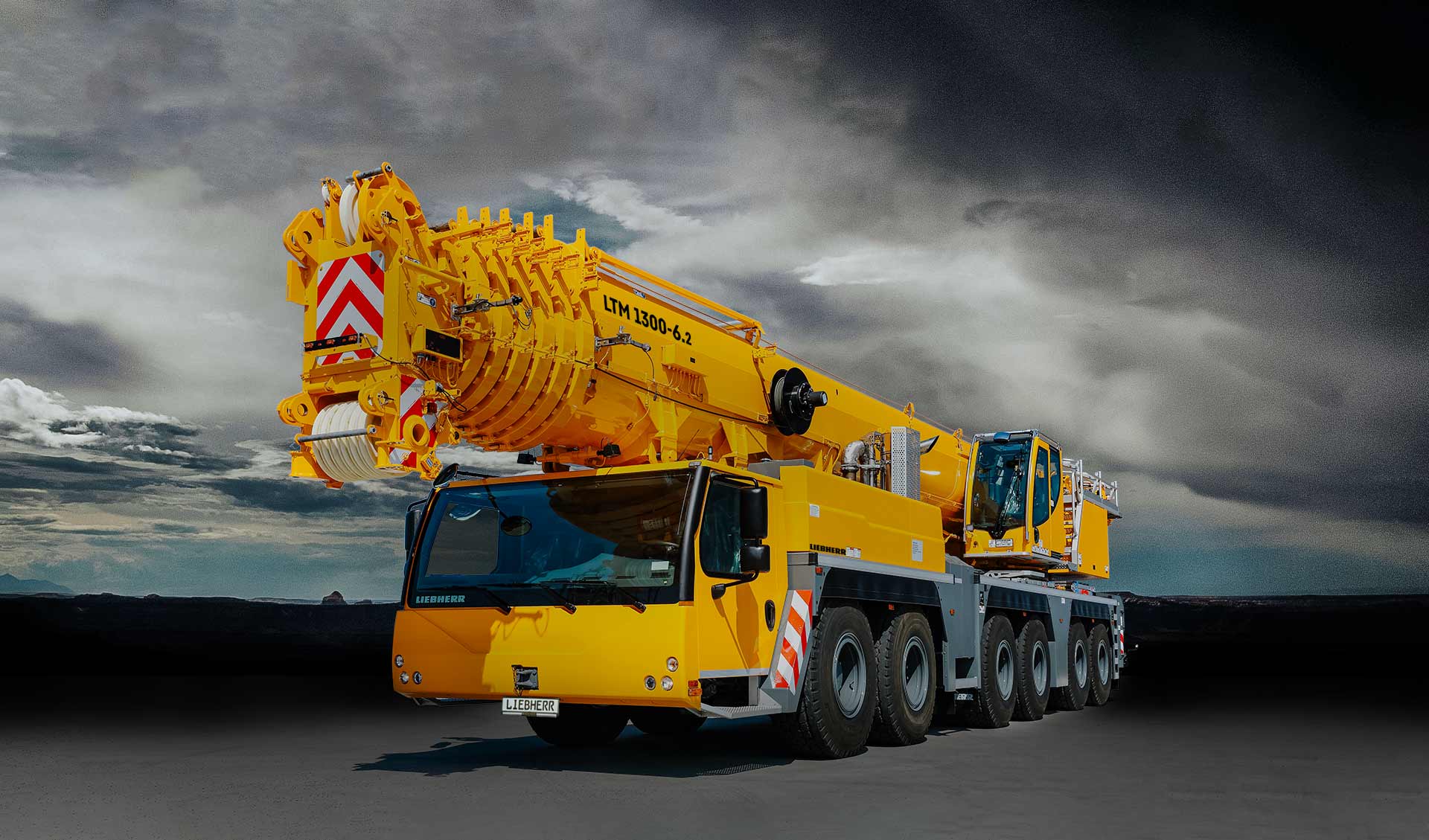

LTM 1300-6.2

Mobile crane

LTM 1300-6.2 - Powerful with an innovative drive concept.

The design of the LTM 1300-6.2 saw the first development of an innovative drive concept – the engine in the undercarriage powers the superstructure using a mechanical shaft. This eliminates the need for a second engine. This means one less engine and therefore significantly reduced maintenance costs. The lower weight can be used to increase lifting capacity. On the one hand it is a simple, classic folding jib crane whilst on the other it is a small luffing jib crane on the market for crane operators with a low cost entry point into the luffing jib crane class. It also features high performance, economy and variable boom systems.

metricimperial
  • Max. load capacity - 300 t

  • Telescopic boom - 78 m

  • Max. hoist height - 114 m

  • Max. radius - 94 m

  • Number of axles - 6

What's inside

Single-engine concept:

The first mobile crane with an innovative single-engine concept reduces maintenance costs significantly.

Completely flexible:

VarioBase® enables the crane to be supported flexibly and as required – enhancing safety and lifting capacity.

Simple:

Activating the automatic erection system in the crane control system ensures that the adjustment winch is adjusted automatically as the telescopic boom is luffed.

Flexible at any height:

Infinite flexibility thanks to a wide, variable range of boom systems.

A great view:

Fast, safe set-up process for the crane using BTT remote control. Optional BTT-E remote control means that the crane can be controlled in a direct line of sight whilst in action.

Photo gallery

Technical data

Max. load capacity
300 t
at radius
3.00 m
Telescopic boom from
14.70 m
Telescopic boom up to
78.00 m
Lattice jib from
5.50 m
Lattice jib up to
70.00 m
Drive engine/make
Liebherr
Drive engine
8-Zylinder-Diesel
Drive engine/power
455 kW
Number of axles
6
Drive/Steering standard
12 x 6 x 12
Drive/Steering option
12 x 8 x 12
Driving speed
85.00 km/h
Total ballast
96.00 t
