FKvesf 1803 Premium

Under counter

Chilled drinks always look appealing – and this couldn’t be more true in this beverage cooler: the LED lighting presents the range in the best light. Thanks to the powerful cooling, the beverages are soon ready to be enjoyed.

Total gross volume - 171 l
171 l
Model type - Under counter
Under counter
Refrigerant - R 600a
R 600a
Exterior dimensions: height/width/depth - 85 / 60 / 60 cm
85 / 60 / 60 cm
Storage capacity 0.5l PET - 115
115
Storage capacity 0.33l can - 217
217
Energy efficiency class - D
D

Model type	Under counter
GTIN	9005382167991
Classification	Premium

Energy efficiency class	D
Energy consumption per year	406 kWh/a
Climate class	CC2
Temperature class	K4
Climate class (safety standard)	5
Average ambient humidity	65 %
Voltage	220-240 V ~
Ambient temperature	+10 °C to 40 °C
Frequency	50 Hz
Maximum ambient temperature	32 °C
Connection rating	1.0 A

Control	Mechanic control system
Temperature display	internal analog
Malfunction: Warning signal	—

Gross volume cooling	171 l
Net volume cooling	136 l
Cooling system	dynamic
Refrigerant	R 600a
Adjustable temperature range	+1 °C to +15 °C
Defrosting method	automatic
Number of storage shelves	4
of which height-adjustable	3
Shelf loading capacity	45 kg
Storage capacity 0.5l PET	115
Facing 0.5 l PET	7
Storage capacity 0.33l can	217
Facing 0.33 l tin	7
Interior light	LED light

Material of interior containers	Plastic white
Colour	silver
Side wall material	steel
Door material	Insulated glass door with steel frame
Door colour	silver
Type of lock	mechanical
Handle	Ergonomic slimline handle
Bottom grid shelf	✔
Shelf material	Plastic-coated grids
Material of adjustable feet	Steel, zinced

Door hinges	Right
Removable door gasket	—
Self-closing door	—
Adjustable feet	2
Connecting cable length	2,000 mm

Door design

HardLine

Total gross volume	171 l
Total net volume	136 l
Exterior dimensions: height/width/depth	85 / 60 / 60 cm
Exterior dimensions: height/width/depth (with packaging)	905.0 / 614.0 / 649.0 mm
Weight (without packaging)	44 kg
Weight (with packaging)	46.00 kg

Operating instructions

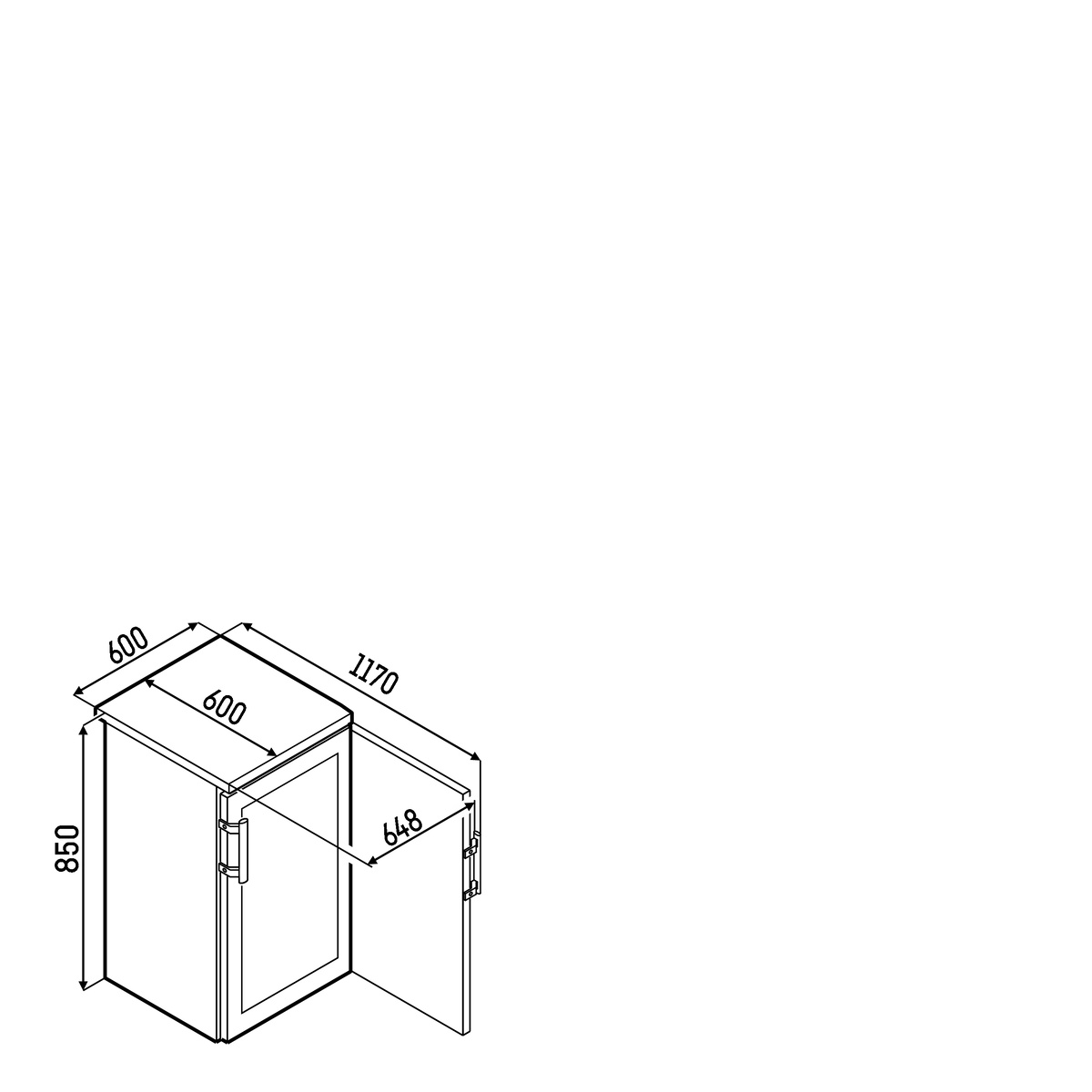

Dimensional drawing

CE-Certificate

Please note: Despite careful data maintenance, we reserve the right to make technical changes and there may be errors and deviations in the image and text content compared to the original appliance.
