Measured in accordance with DIN 459-1 at min. 2 drum rotations per minute. The given values for capacity and water volume only apply to a horizontally aligned mixer frame. A deflection of the frame during loading is not taken into account here and may negatively affect the water volume under certain circumstances. The real maximum filling capacity with concrete depends on the consistency and the rheological characteristics of the concrete. The topology of the road and the driveability also influence the maximum loading volume.

Nominal filling in compacted mixed concrete.

Weight details for basic unit with chassis power take-off (PTO), incl. 2 extension chutes, compl. assembled/ready for operation, deviations +/- 5%.

Technical data

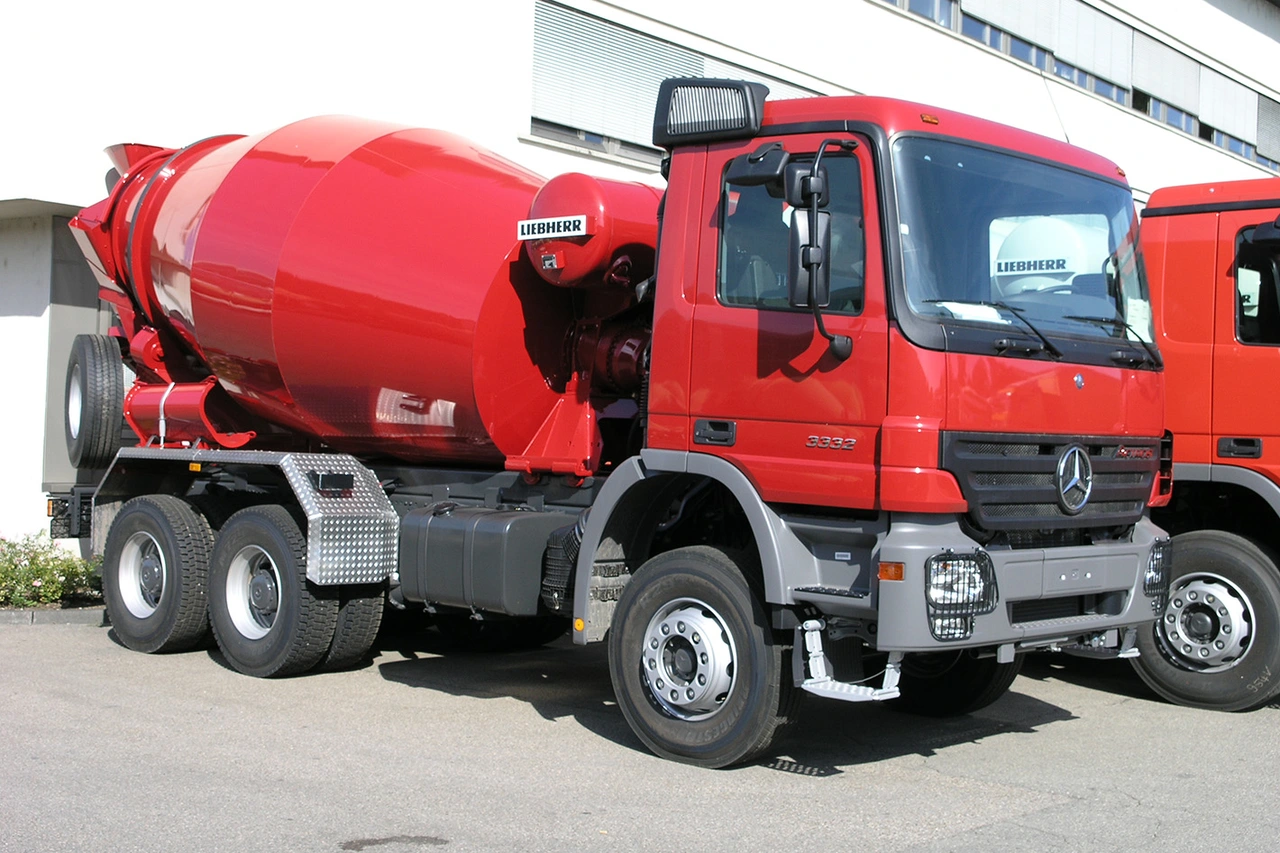

The HTM 804 truck mixer serves as a perfect all-rounder for economic concrete transportation due to its low body weight and long-lasting, sturdy components.

Imprint

Data protection notice

Contact

Privacy Settings

Accessibility statement

Refrigeration and freezing

Earthmoving

Deep foundation

Tower cranes

Concrete technology

Mobile and crawler cranes

Mining

Aerospace and transportation systems

Material handling

Gear technology and automation systems

Components

Maritime cranes

Careers

Job vacancies

Company

Liebherr worldwide

History

Services

Sales and service partners

Liebherr shop

Product cybersecurity

News

News and press releases

Exhibitions and events

Visit us

LinkedIn

Youtube

TikTok

This chart is provided by Google*. When you load this chart, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this chart pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each Google chart individually in the future and want to be able to load them without this blocker, you can also select “Always accept Google Charts” and thus also consent to the respectively associated data transmissions to Google for all other Google charts that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

External content (third-party service)Google Charts

This map material is provided by Google*. When you load this map, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this map pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each Google map individually in the future and want to be able to load them without this blocker, you can also select “Always accept Google Maps” and thus also consent to the respectively associated data transmissions to Google for all other Google maps that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.* Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

External content (third-party service)Google Maps

Click RELEASE VIDEO and follow the data protection notices.

This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.* Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

Nominal filling	8 m³
Water capacity	9.10 m³
Geometric drum capacity	14.29 m³
Clearance height without frame	2,477 mm
Hopper filling height without frame	2,437 mm
Assembly weight Standard	3,855 kg
Additional weight separate motor	500 kg

HTM 804

Technical data
