LB 28
Rotary drilling rig
LB 28

The Liebherr LB 28 is designed as rotary drilling rig. All common drilling methods can be executed, e.g. Kelly drilling, continuous flight auger drilling, drilling with partial or full displacement tools, double rotary drilling and soil mixing.

Operating weight
99.3 t
Max. torque
320 kNm
Max. push / pull force
400 kN
Engine output
390 kW
Max. drilling depth
70 m
Max. drilling diameter
2,500 mm

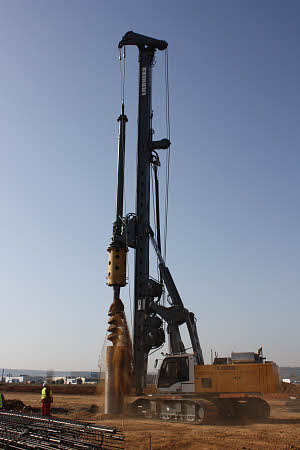

Liebherr rotary drilling rig LB 28
