Plastic chain conveyors
Conveying system

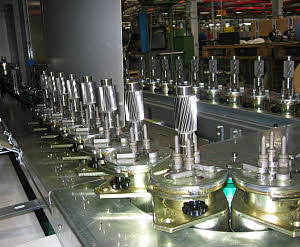

Plastic chain conveyors (KKB)

The plastic chain conveyors are designed to transport any number of unevenly-shaped workpieces without them touching each other. The workpieces are transported on pallets. Modular corner pieces mean that any type of conveyor shape is possible. Parallel machines are connected using satellite units.

The individual sections can be connected so that the plastic chain conveyors can be extended to any length, and the queue effect means they are independent of timing.

Technical data
Workpiece weight (Standard) [kg]
max. 20
Workpiece weight (heavy load) [kg]
max. 180
Conveyor length [m]
max. 10 je Antrieb
Transport capacity per drive [kg]
300
Propulsion
Three-phase gear motor
Number of drives
max. 4
Transport speed [m/min]
6/12
Workpiece diameter (standard) [mm]
max. 400, special sizes on request
Additional equipment
Spin apparatus, suction unit, identification equipment, stacker, tilt/turn device, adjustable workpiece holder, roller supports for heavy-duty version, tilt protection for upright parts
